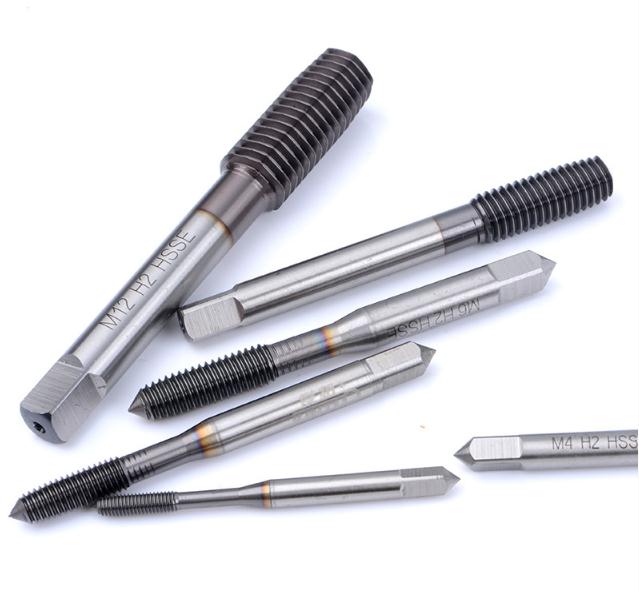

Thread forming tap

Thread forming tap

Model: Thread forming tap

Diameter:M3-M24mm

Process:: Full ground

Material: HSS M2

Standard:JB/T7428

Precision: H1,H2,H3

Packing: 1Piece in a box.

Category:

Description

  • Working Materials:Hardened Steel, Stainless Steel, Carbon Steel, Aluminum Alloy Stelel, Silicon Aluminum Alloy, Titanium Alloy, General steel,  Cop
  • Model
    Pitch
    L
    I1
    d15
    口a
    M7*0.75
    0.75
    66
    19
    5.60
    4.50
    M8*0.75
    0.75
    66
    19
    6.30
    5.00
    M8*1.0
    1.0
    72
    22
    6.30
    5.00
    M9*0.75
    0.75
    66
    19
    7.10
    5.60
    M9*1.0
    1.0
    72
    22
    7.10
    5.60
    M10*0.75
    0.75
    73
    20
    8.00
    6.30
    M10*1.0
    1.0
    80
    24
    8.00
    6.30
    M10*1.25
    1.25
    80
    24
    8.00
    6.30
    M12*1.0
    1.0
    80
    22
    9.00
    7.10
    M12*1.25
    1.25
    89
    29
    9.00
    7.10
    M12*1.5
    1.5
    89
    29
    9.00
    7.10
    M14*1.0
    1.0
    87
    22
    11.20
    9.00
    M14*1.25
    1.25
    95
    30
    11.20
    9.00
    M14*1.5
    1.5
    95
    30
    11.20
    9.00
    M16*1.0
    1.0
    92
    22
    12.50
    10.0
    M16*1.5
    1.5
    102
    32
    12.50
    10.0
    M18*1.0
    1.0
    97
    22
    14.00
    11.2
    M18*1.5
    1.5
    112
    37
    14.00
    11.2
    M18*2.0
    2.0
    112
    37
    14.00
    11.2
    M20*1.0
    1.0
    102
    22
    14.00
    11.2
    M20*1.5
    1.5
    112
    37
    14.00
    11.2
    M20*2.0
    2.0
    112
    37
    14.00
    11.2
    M22*1.0
    1.0
    109
    24
    16.0
    12.5
    M22*1.5
    1.5
    118
    38
    16.0
    12.5
    M22*2.0
    2.0
    118
    38
    16.0
    12.5
    M24*1.0
    1.0
    114
    24
    18.0
    14.0
    M24*1.5
    1.5
    130
    45
    18.0
    14.0
